KMQ-1628AU-N

Main Features

• Supports multiple camera signals including 5MP AHD/TVI/CVI, 960H/D1, and IP cameras, allowing flexible camera replacement and integration.
• Equipped with a Taiwan-made chipset with H.265 compression, delivering clear image quality, longer recording time, and faster transmission speed.
• RS-485 input available for controlling PTZ or Speed Dome cameras, with UTC (Up-The-Coax) control functionality.
• HD multi-stream video mode supports simultaneous live view, recording, and playback operations.
• Mobile monitoring and audio app: Socatch, supporting iPhone, iPad, Android, and WinCE devices.
• CMS centralized monitoring software, compatible with Windows and macOS operating systems.

Model		KMQ-1628AU-N
Camera Input		16CH (Analog video + IP video)

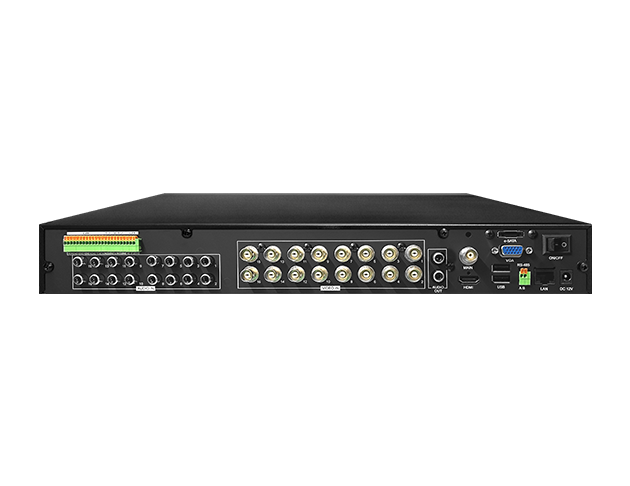

Product Images
Housing		N
Analog Live Input		TVI / AHD / CVI: 5MP @ 12/10 fps, 4MP @ 15/12 fps, 3MP @ 18/15 fps, 1080P @ 30/25 fps, 720P @ 30/25 fps, 960H / D1 @ 30/25fps
Network Input	Bandwidth	Max. 100Mbps (Max. Main stream: 5Mbps + Sub stream: 1Mbps per channel)
	Main stream Single Live & Playback channel (without Analog camera input)	Max. 5MP, 4MP, 3MP, 1080P @ 30/25 fps (ONVIF 2.4)
	Sub stream Multiple Live & Playback channels (without Analog camera input)	720P @ 30/25 fps, VGA @ 30/25 fps
Video	Output	1 HDMI (Max. 3840 x 2160) with Audio, 1 VGA (Max. 1920x1080), 1 CVBS (BNC interface 944x480)
Audio	RCA Input	16
	RCA Output	2
	Compression	Audio Codec：ADPCM, Sample Rate：8k, Channel 1 Depth 16
System	Operating System	Embedded Linux OS
	SoC	NT98336
	SATA Devices	Max. 3 x SATA Devices (3.5' HDD x 3 or 3.5' HDD x 2 + eSATA x 1 or 3.5' HDD x 1 + eSATA x1 + Optical Device x 1)
	External HDD	Supported ( eSATA )
	Alarm In / Relay Out	Alarm-in x 16, Relay-out x 2
	Serial Interface	RS-485 x 1
	USB Ports	USB 2.0 x 2
	Dimension ( mm )	430 (w) x 55 (h) x 293 (d)
	Power Rating	Input: 100 / 240 VAC, Output: 12V / 5A / 60W
Display	Split Screen	1, 4, 9, 13, 16 SEQ.
	Auto Channel Switching	1 - 99 sec
	Mode	Zoom, PIP, Auto SEQ.
Recording	Compression	H.264 / H.265
	Main (Recording) Resolution	5MP @ 12：2560 x 1920, 4MP @ 15：2560 x 1440, 3MP @ 18：1920 x 1520, 2MP @ 30：1920 x 1088, 720P @ 30：1280 x 720, 960H / D1 @ 30：944 x 480, 704 x 480, 352 x 240 (NTSC) / 944 x 576, 704 x 576, 352 x 288 (PAL)
	Sub (Network) Resolution	640 × 360
	Picture Quality	1-10 levels for adjustment
	Mode	Continuous, Event, Schedule
	Record Rate	TVI/AHD/CVI: 5MP @ 6/5 fps, 4MP @ 7/6 fps, 3MP @ 9/7 fps, 1080P @ 15/12 fps, 720P @ 30/25 fps, 960H / D1 @ 30/25 fps
	Pre-Alarm	1 - 3 SEC
	Post-Alarm	1 - 100 SEC
Playback	Search Mode	Date / time, Event
	Zoom	*Digital ( x 2 - x 5 )
Network	Network Interface	1 x RJ45 Ethernet port ( 100Mbps )
	Protocol	TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP, DDNS
	Remote Software	Mobile device application: Socatch, Socatch Pro Windows application: iWatchDVR macOS application: Socatch Desktop browser: Mozilla Firefox, Safari, Chromium-based browsers
	Account	1 Admin + 10 Users
	Mobile Device	iOS & Android
Backup	Interface	USB
	Audio Backup	YES
	Backup Type	Network, Ext. USB flash device etc
Alarm	Motion Detection	Sensitivity: 10 levels for each channel Area: Programmable individually
	Event Log	Up to the 10000 events (Sensor, Motion, video Loss, power on, remote login, logout, HDD error, HDD full and more)
OSD & DVR Control	Multi-Language	Supported
	Channel Title	Supports remote multilingual settings
	USB Mouse	Supported
	Touch Panel	-
	Remote Controller	Supported
	System Upgrade	USB Flash Drive, iWatch DVR
	Pan/Tilt/Zoom Control	RS485 Interface ( Supported protocol: Pelco P, Pelco D, Samsung, LG, LiLin ) UTC Interface ( Supported protocol: AHD / TVI / CVI ), ONVIF
General	Operating Temperature	0°C ~ +55°C（32°F ~ 131°F）
	Operating Humidity	10%~80%
