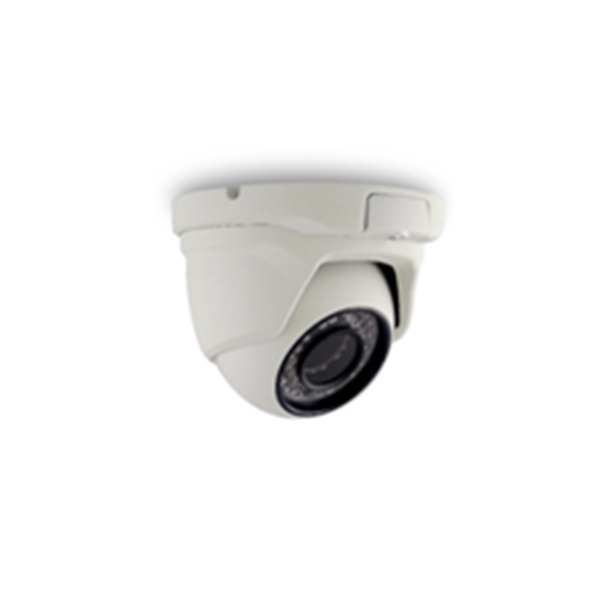

ID-MC1301
加入詢問車
產品說明
| Camera Model Name | ID-MC1301C |
| Image Sensor | OV4689 |
| Sensor Resolutions | 4 Megapixel |
| Max Video Resolution | 2592*1520 |
| Sensitivity | 0.01Lux/0Lux(IR on) |
| Lens(standard) | 4mm 4MP/F2.0 |
| Lens(optional) | 2.8mm/6mm/8mm 4MP/F2.0 |
| Support DC IRIS | NO |
| Support Auto zoom | NO |
| Angle of View | 72°(H) |
| ICR | Mechanism IR cut Filter |
| LED | 24pcs |
| Distance(M) | 15M |
| Video / Audio | |
| Vido Compression | H.265 |
| Video Profile | 2592*1520 / 2048*1520 / 1920*1080 / 1280*720 / D1 / CIF |
| Frame Rate | Up to 15/12 fps @ 2592*1520 |
| 30/25 fps @ 2048*1520 | |
| 30/25 fps @ 1920*1080 | |
| 30/25 fps @ 1280*720 | |
| 30/25 fps @ D1 / CIF | |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness,Shutter Time, Mirror, Fip ,Motion |
| WDR, Day & Night adjustment, 2D/3D Denoise,BLC,DeFog,AWB. | |
| Video Bitrates Adjust | CBR |
| Channel Control | RS-232 serial data communications |
| General | |
| CPU | Multimedia SoC Hi3516D |
| RAM | 4Gb |
| Flash | 128MB |
| Power Consumption | TBD |
| Water Resistance | IP66 |
| Operation Temperature | -10℃～+50℃ |
